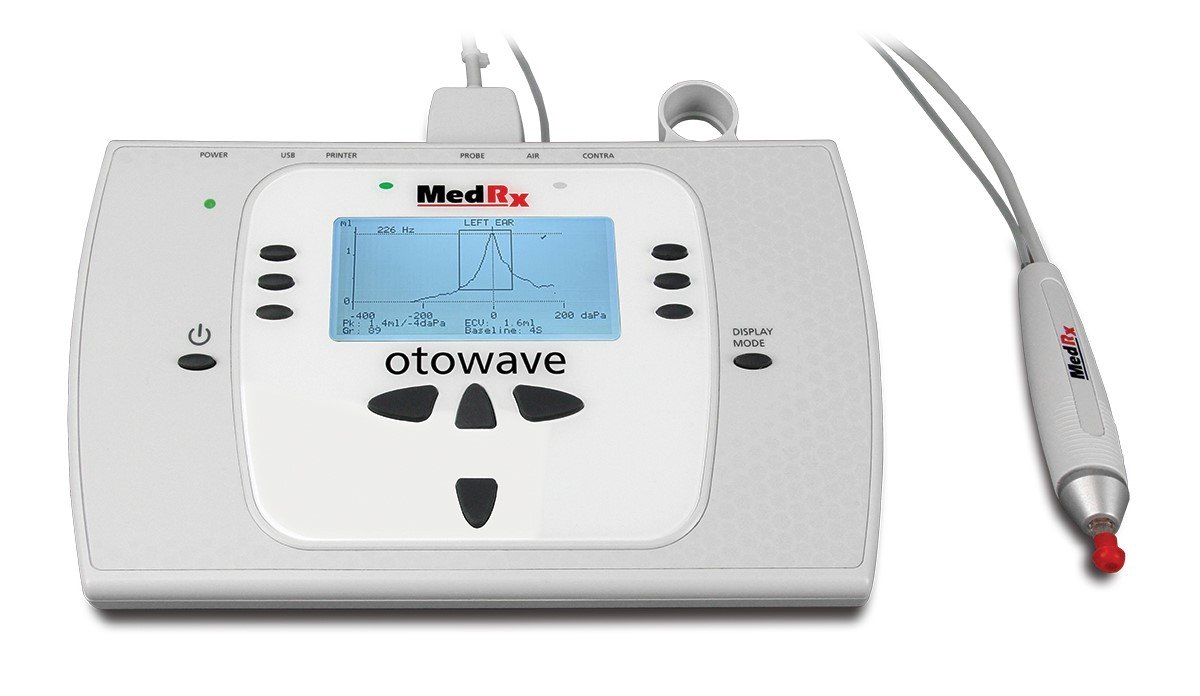

Otowave 302/302+

Standard Desktop Diagnostic Tympanometer

Schedule demo

  • Desktop Diagnostic Tympanometer With Optional Patient Profile Programming

  • The Otowave 302 and 302+ tympanometers offer clinicians a wide range of testing options for all ages.

    The 302 provides 226 Hz probe tone impedance measurements and a user programmable range of ipsi and contralateral reflex test measurements at 500 Hz, 1000 Hz, 2000 Hz and 4000 Hz.

    The 302+ option features a comprehensive range of test functions including user defined 226 Hz and 1000 Hz probe tone impedance measurements and a user programmable range of both ipsi and contra lateral reflex test measurements at 500 Hz, 1000 Hz, 2000 Hz and 4000 Hz

    In addition to these features the 302+ also has 6 additional programmable patient profiles, allowing for faster testing.





  • Features:

    • Compact design with a graphic LCD display
    • 226Hz probe tone or 1000Hz probe tone (302+) with admittance, susceptance and conductance measurements (YBG)
    • Live tymp display - measurements shown in real time
    • Ipsilateral and contralateral reflex frequencies (0.5, 1000, 2000, & 4000Hz)
    • Auto pass/refer evaluation (ear canal volume)
    • Fast and accurate impedance measurements
    • Intuitive use/ real time display
    • Optimized, user-selectable measurement speeds
    • Six user-configured test protocols (302+)
    • Internal memory, PC connectivity and optional portable printer

Product Specs

  • Analysis Performed: Compliance peak level (in ml), Ear canal volume (ECV) at 200 daPa or -400 daPa, Ipsilateral reflex or ± 10 daPa or ± 10% (whichever is larger) over range 0.1 ml to 6 ml

    Probe Tone Levels: 226 Hz ± 2%, 85 dB SPL ± 2 dB; 1000Hz ± 2%, 79 dB SPL ± 2 dB (302-H only) over ear canal volume range

    Pressure Levels: +200 daPa to – 400 daPa, ± 10 daPa or ± 10% (whichever is larger) over range 0.1 ml to 6 ml

  • Ear Volume Measurement Range: 226 Hz: 0.2 ml to 6 ml; 1000 Hz: 0.1 ml to 6 ml ± 0,1 ml or ± 5% (whichever is larger)

    Ipsilateral Reflex Tone Levels: 500 Hz; 1000 Hz, 2000 Hz, 4000 Hz, Frequency ± 2%, Configurable over range 70 dB to 100 dB HL (4,000 Hz restricted to 95 dB HL)* ± 2 dB, referenced to 2 ml calibration volume, compensates for measured ear volume

    *2kHz level is restricted to maximum 95dBHL for ear canal volumes greater than ~3.5ml



  • Contralateral Reflex Tone Levels: 500 Hz; 1000 Hz, 2000 Hz, 4000 Hz, Frequency ± 2%, Configurable over range 70 dB to 110 dB HL (4,000 Hz restricted to 95 dB HL)* ± 2 dB, referenced to 2 ml calibration volume, compensates for measured ear volume

    *2kHz level is restricted to maximum 105dBHL for ear canal volumes greater than ~3.5ml

    Reflex Measurement Range: 0.01 ml to 0.5 ml ± 0.01 ml configurable in 0.01 ml steps

  • Power: Mains: 100-240 V AC; 50/60 Hz via mains adapter (approved in medical safety standards)

    Dimensions: Base Unit: 270 x 60 x 165 mm / 10.63 x 2.36 x 6.49 inch (excluding connections), Probe: 130 x 25 mm / 5.11 x 0.98 inch

    Weight: Base unit: 760 g / 1.68 lbs, Probe: 115 g / 0.25 lbs
