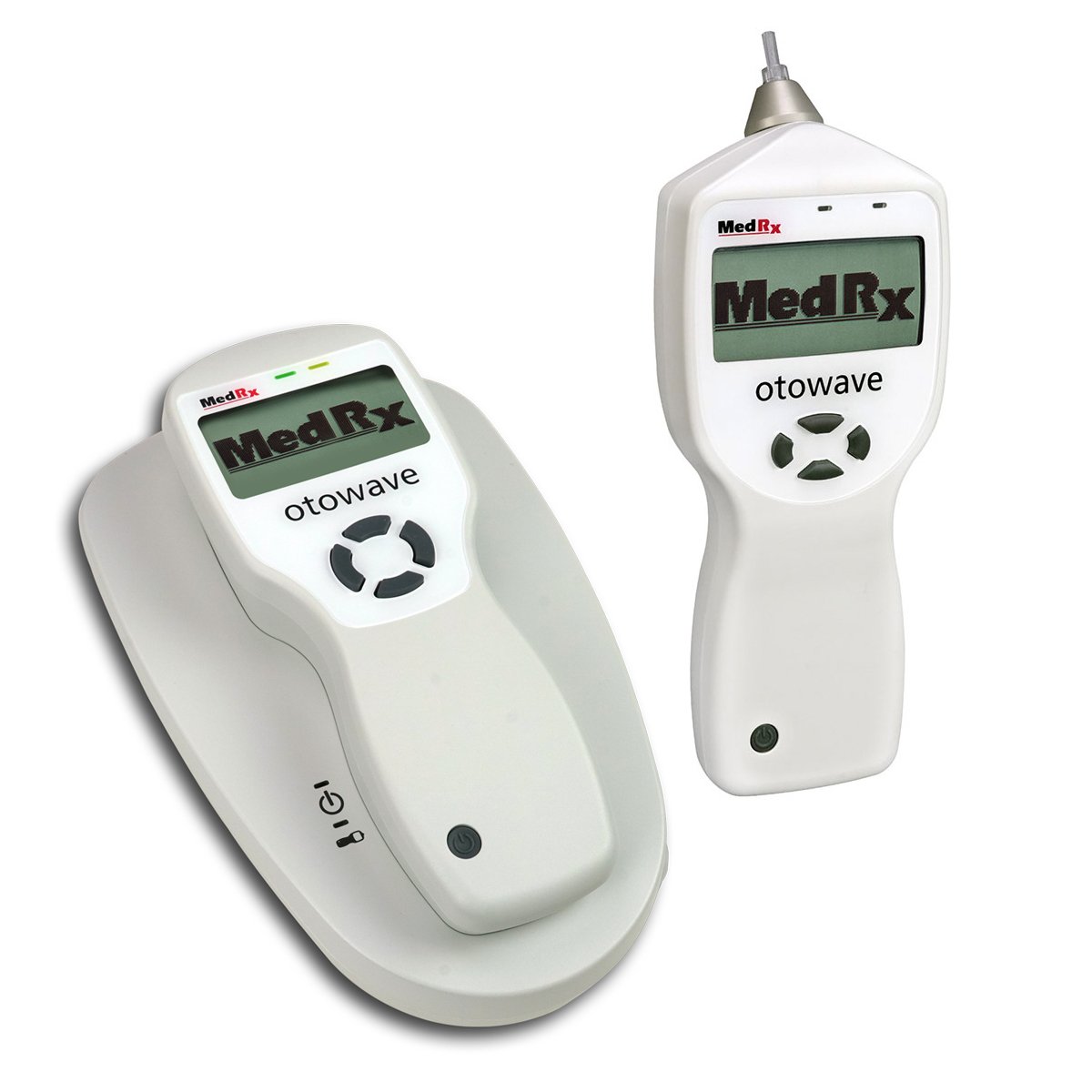

Otowave 102

HANDHELD SCREENING TYMPANOMETER

  • Otowave 102 Screening Tympanometry

  • This wireless hand-held Tympanometer provides 226 Hz probe tone impedance measurement including 4 acoustic reflex frequencies. Results are stored internally (up to 30 records). All data can be transferred to a PC via the MedRx software module and IR dongle.

  • Features:

    • Fast and accurate middle ear measurements
    • Intuitive and ergonomic design
    • Large LCD graphics display
    • Programmable ipsi reflex tests
    • Optional portable printer and PC interface
    • Multiple language options
    • Internal Memory
    • PC connectivity to Noah applications with optional IrDA port
    • Compact, lightweight, and portable

Product Specs

  • Analysis Performed: Compliance peak level (in ml), Ear canal volume (ECV) at 200 daPa, Ipsilateral reflex

    Probe Tone Levels: 226 Hz ± 2%, 85 dB SPL ± 2 dB. Over range 0.2 ml to 5 ml

  • Pressure Levels: +200 daPa to – 400 daPa. ± 10 daPa

    Ear Volume Measurement Range: 0.2 ml to 5 ml ± 0.1 ml or ± 10% (whichever is larger) over entire range

  • Reflex Tone Levels: 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz Frequency ± 0.1%, Configurable over range 85 dB to 100 dB HL (programmable in 5 – 10 dB steps)

    Reflex Measurement Range: 0.01 ml to 0.5 ml ± 0.01 ml configurable in 0.01 ml steps

  • Power: Battery specification: 4 Alkaline AA cells or 4 NiMH rechargeable

    Dimensions: Approx. 21 cm x 8 cm x 4 cm (L x W x H)

    Weight: 380 g
