Wireless, Binaural Live Speech Mapping and  Real Ear Measurement System

  • wireless-probe-mics-380

  • We're expanding our Wireless Portfolio to Include a REM Only Portion

    MedRx’s modern REM and LSM software modules allow clinicians to fit hearing aids more accurately than ever, improving patient satisfaction and reducing hearing aid returns. Powered only by the USB on your computer, the WREM comes standard with a high frequency fitting capability that allows clinicians to fit up to 12,500 Hz.

    Once your fittings begin, the probe microphone's rechargeable battery provides 6 hours of continuous use.

    Read the WREM Blog Post >

  • Features:

    • Wireless Binaural Real Ear Measurements and Live Speech Mapping System
    • REM AutoFit Capable
    • The REM Software includes targets for MSS (Modified Speech Spectrum), DSL v5.0, NAL-NL1 and NAL-NL2
    • HLS (Hearing Loss Simulator) & MHA (Master Hearing Aid) for 3rd Party Demonstration
    • PC-Powered with USB-C Connection and Set-up
    • Noah, TIMS®, Blueprint OMS and Sycle Compatible

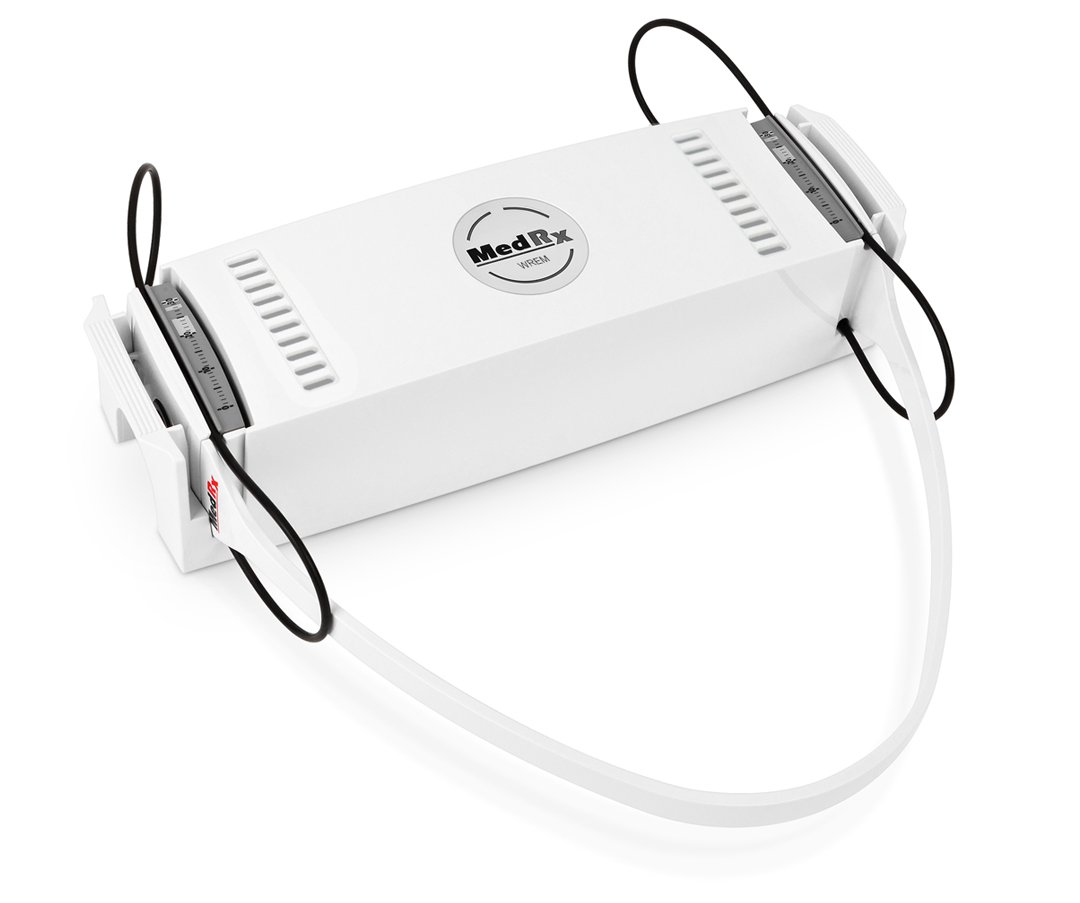

  • wrem-top

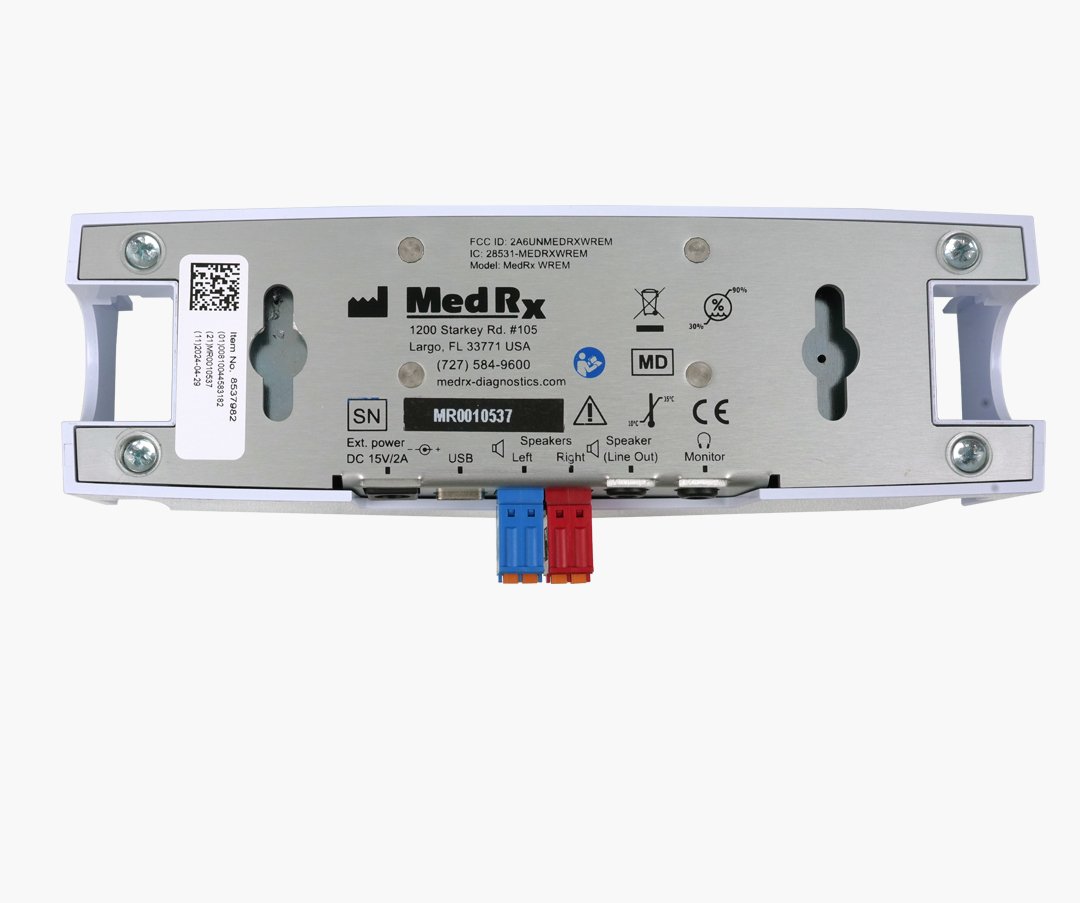

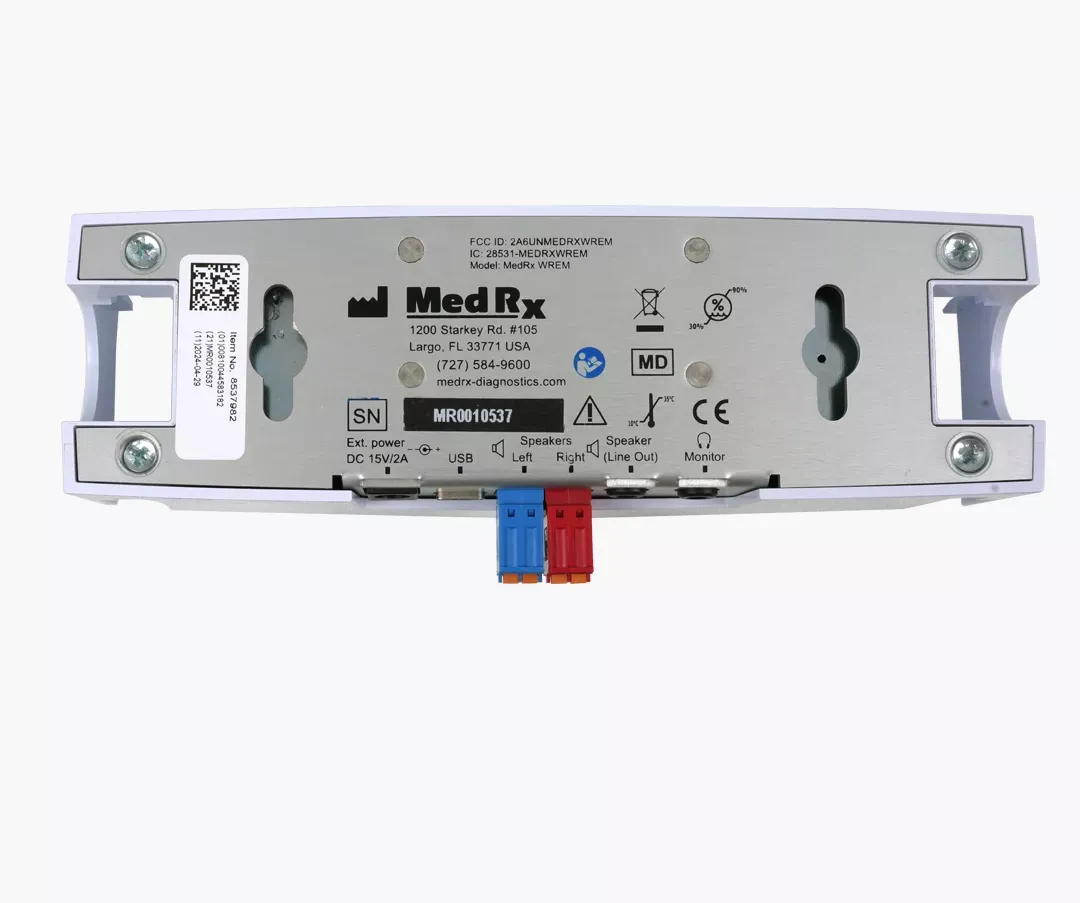

  • wrem-bottom-d
  • wrem-side-c

Product Specs

  • Standards:
    IEC 60601-1:2 Class II
    IEC 60601-1-2 Class A
    IEC 60645-1
    Medical Device Regulation

    REM Speech+ Standards: ANSI S3.46, IEC 61669, EN 61669

    Dimensions: Approx. 18 cm x 6 cm x 5 cm (L x W x H) Approx. 7″ x 2″ x 1.5″ (L x W x H).

    Weight: < 500 g < 1 lb

    System Modality: Real Ear Measurement; Binaural Live Speech Mapping; Hearing Loss Simulator; Hearing Instrument Simulator.

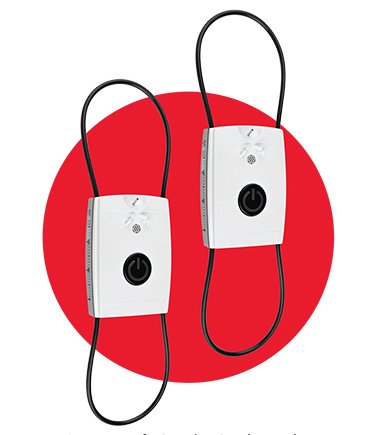

    Probe Microphones (L/R): Dual Electret Microphone Elements (2 Probe Microphones)

    Probe Microphone Tube: Silicone 1.0 mm Nominal Diameter

  • Measurement Frequency Range: 125 – 12500 Hz

    Test Stimuli: Broadband Noise and Synthesized Random Noise – Pink, White, Byrne LTASS and ANSI weighted; ICRA; ISTS; Microphone, File, CD-ROM for Live Speech Mapping, Chirp

    Test Stimulus Levels at 1m: 45 – 90 dB SPL in 1 dB Steps – 200 Hz thru 12500 Hz (depending on speaker wattage & efficiency)

    Test Stimulus Accuracy: ± 3 dB SPL

    Analysis Mode: User Selectable 1/3, 1/6, 1/12, 1/24, 1/48 Octave Bands

    ANSI S3.46 Test Available IEC/EN 61669: Real Ear Unaided Response, Real Ear Unaided Gain; Real Ear Insertion Gain; Real Ear Occluded Response; Real Ear Occluded Gain; Real Ear Aided Response; Real Ear Aided Gain

  • Other Test Available: Live Speech Mapping with Peaks and LTASS analysis; Real Ear to Coupler Difference, Occlusion Effect, Percentile Analysis

    Prescription Methods: NAL-RP; 1/3 Gain; 1/2 Gain; Berger; Pogo 1; Pogo 2; FIG6; DSL m[I/O] NAL-NL1; NAL-NL2

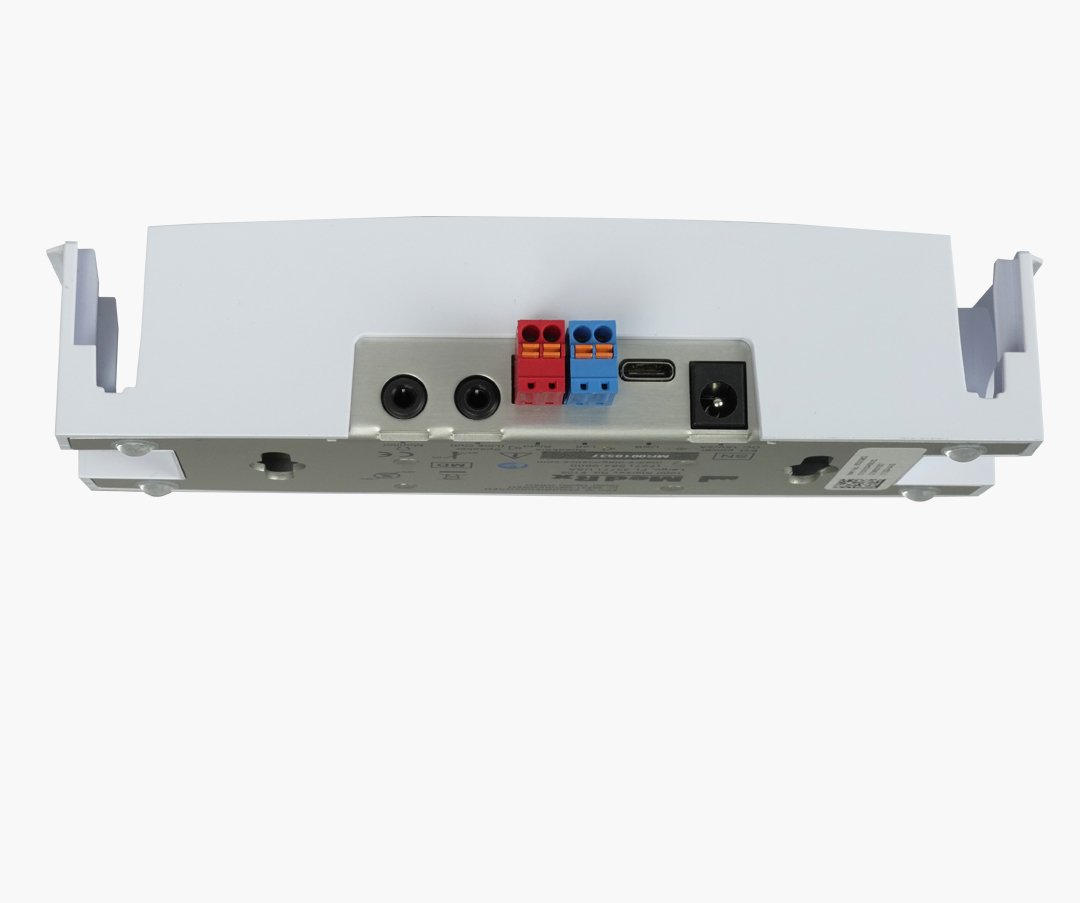

    External Connections: Power Connection USB 3.0 Input 5.0 Volt Bus; Line-Output Jack (Speakers) 3.5 mm Stereo Jack; Speaker Output (Internal Amplifier) (2) 3.81mm Pluggable Spring Clamp; Monitor Headset Jack 3.5 mm Stereo Jack; Power Jack 2.1 mm
    X 5.5 mm.

    Data Connection: USB

    Mode of Operation: Continuous

  • Warm up Time: Less than 5 min after USB connection

    Power Connection: USB 3.0 Input 5.0 Volt Bus

    USB 3.0 Input: Standard USB “C” Socket

    Power Consumption:
    Less than 1800 mA at 15 VDC / less than 900
    mA at 5 VDC

    Operating Temperature: 10°C to 35°C
    Operating Humidity: 30% to 90%
    Storage Temperature: -20°C to 50°C
    Storage Humidity: 10% to 90%
