AVANT REM+

AVANT REM Speech+

In addition to Binaural Live Speech Mapping, the REM software supports all traditional Real Ear Measurements

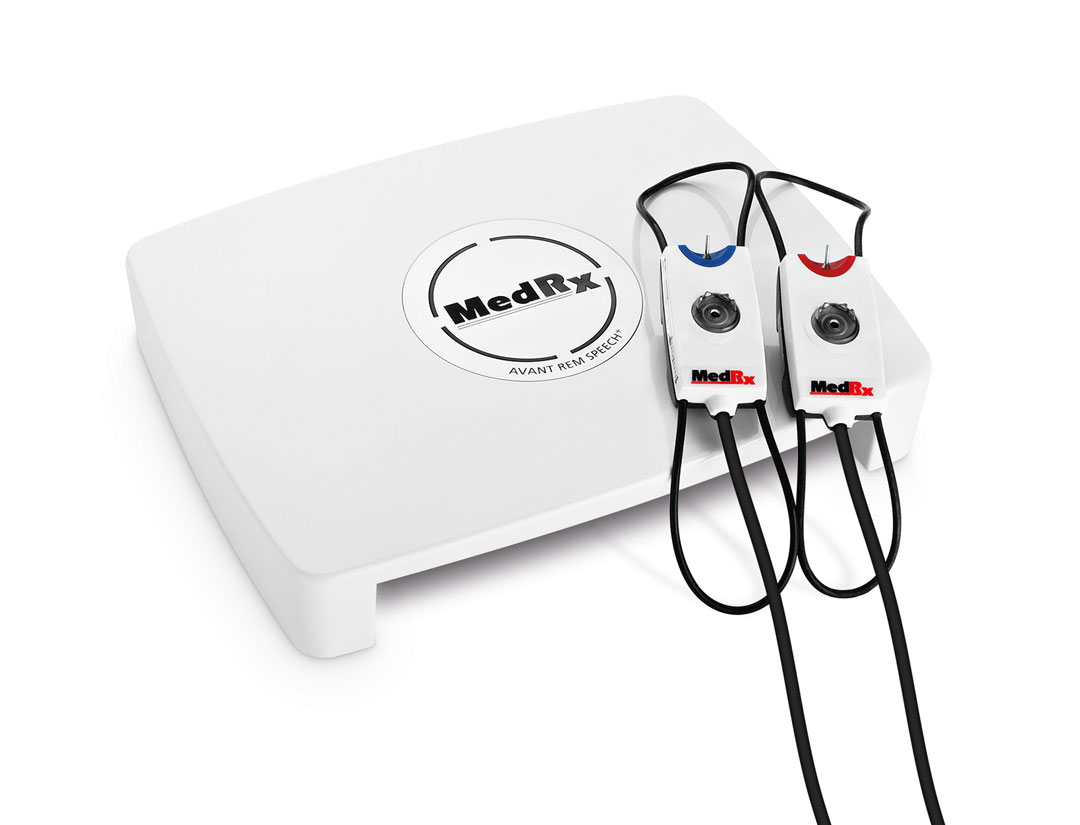

  • The AVANT REM Speech+ features the Sure-Probe microphone system that allows the user to do Live Speech Mapping on both ears simultaneously.

  • The REM software offers an intuitive user interface for data collection, patient monitoring and counseling. In addition to Live Speech Mapping, the software supports all traditional Real Ear Measurements and includes targets for MSS (Modified Speech Spectrum), DSL v5.0, NAL-NL1 and NAL-NL2. Includes HLS (Hearing Loss Simulator) and MHA (Master Hearing Aid) Modules.

  • Features:

    • Binaural Real Ear Measurements and Live Speech Mapping System
    • REM AutoFit Capable
    • The AVANT REM Software includes targets for MSS (Modified Speech Spectrum), DSL v5.0, NAL-NL1 and NAL-NL2
    • HLS (Hearing Loss Simulator) & MHA (Master Hearing Aid) for 3rd Party Demonstration
    • PC-based and Portable
    • HID Device - True Plug and Play
    • USB Connection to Computer
    • Noah, TIMS®, Blueprint OMS and Sycle Compatible

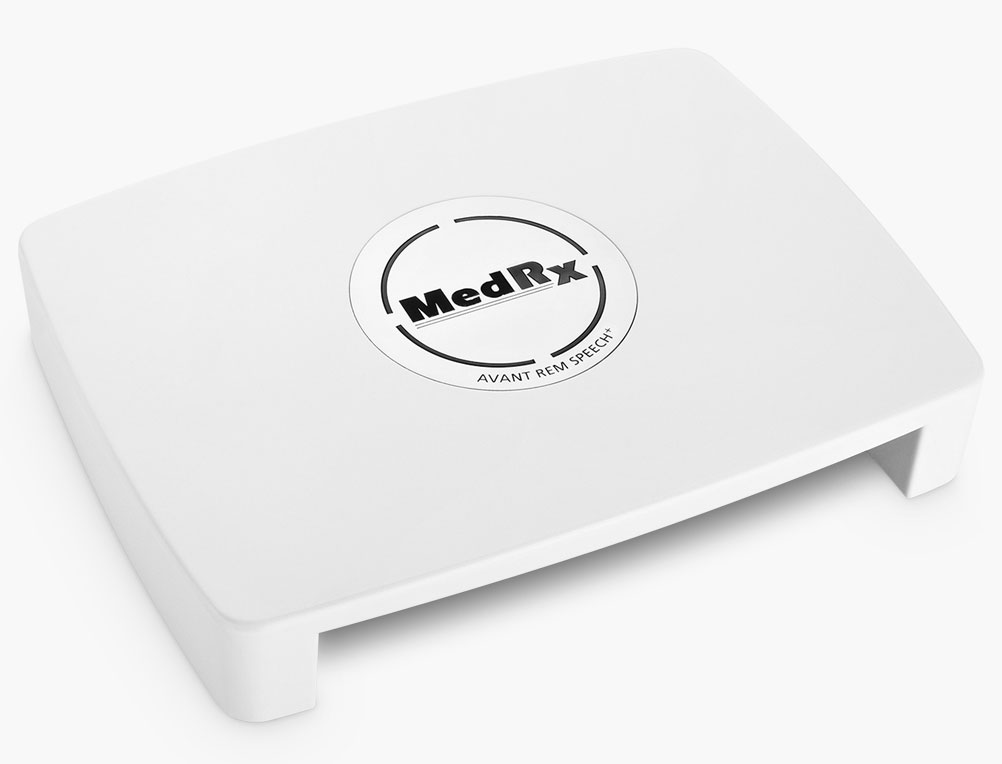

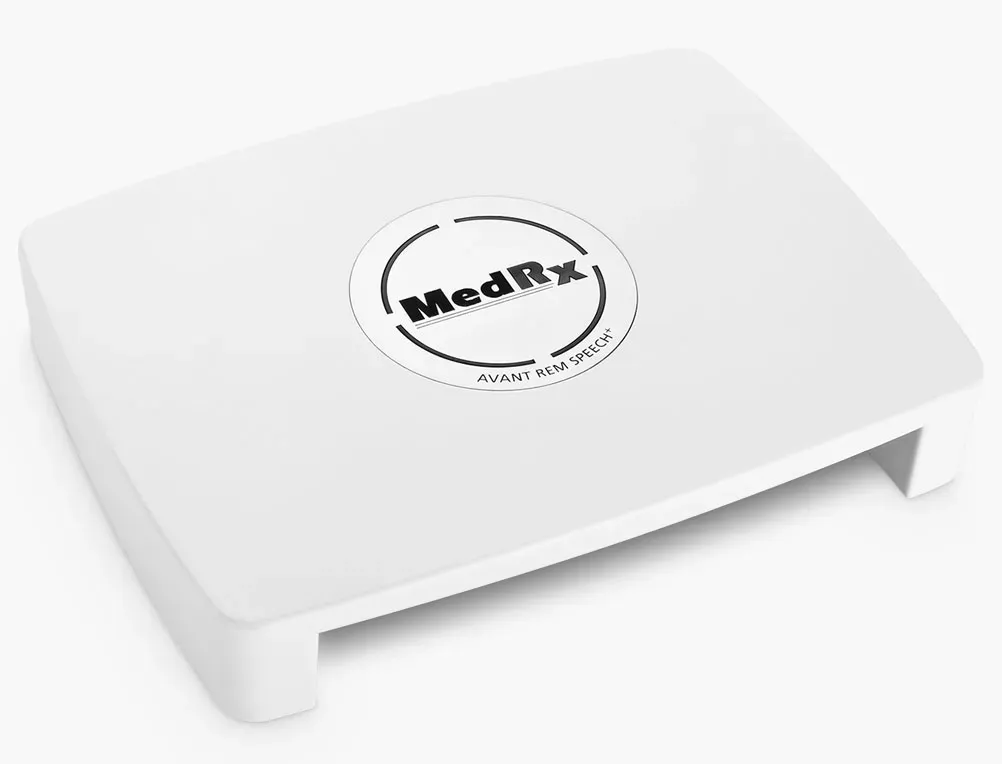

  • AVANT REM Speech top

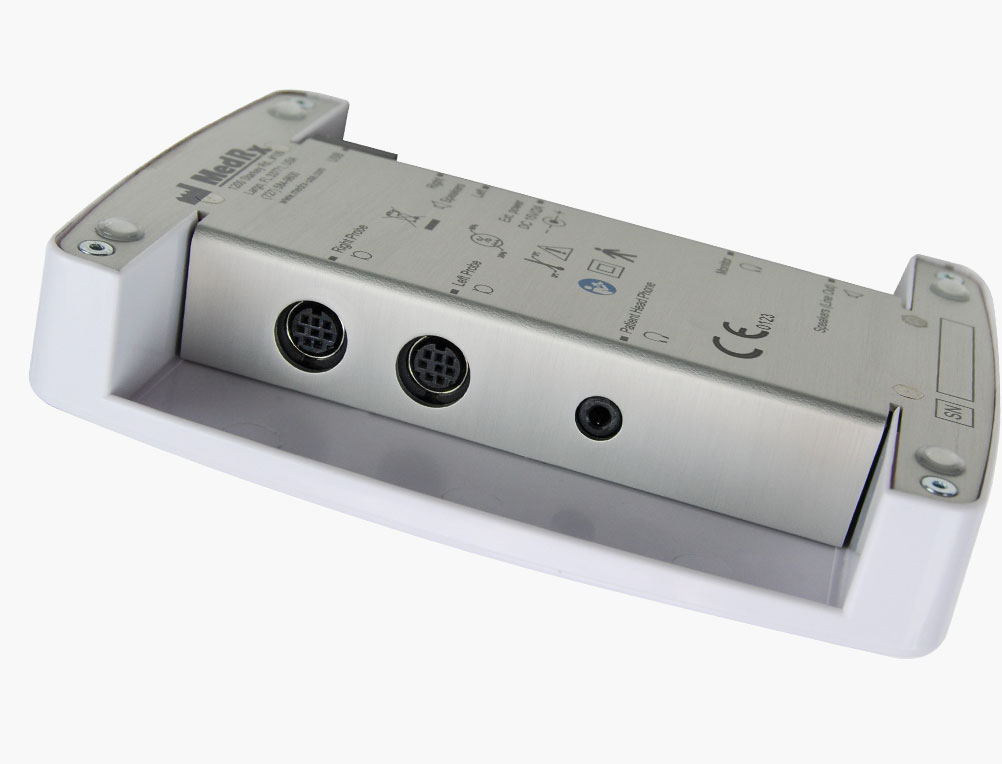

  • AVANT REM Speech left side

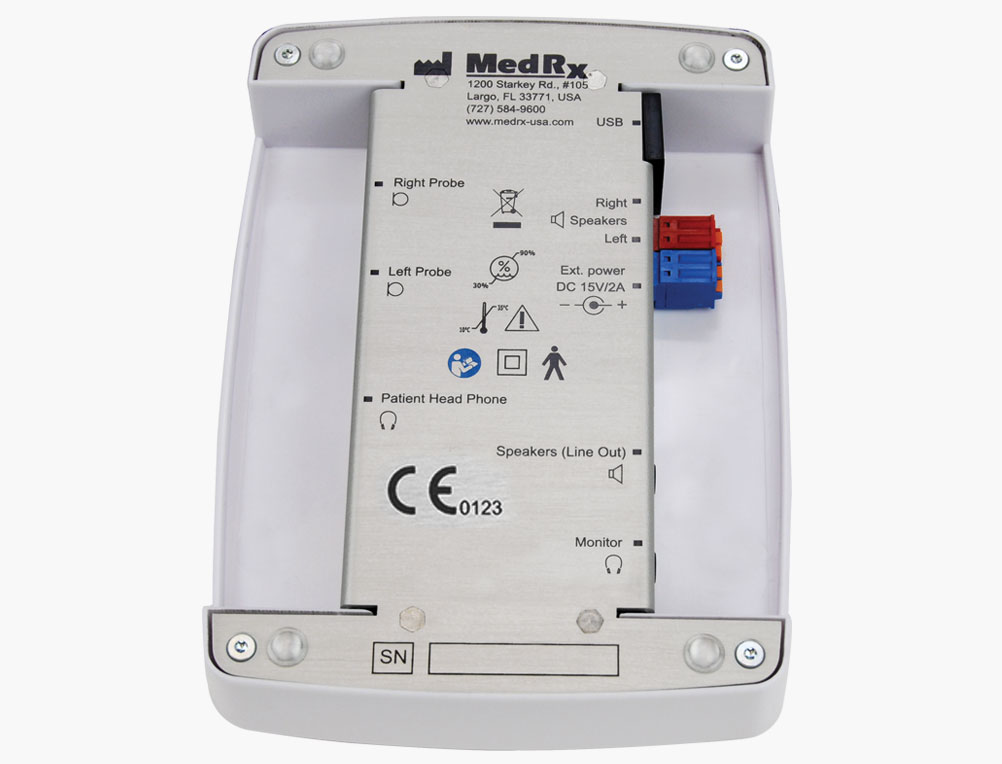

  • AVANT REM Speech bottom

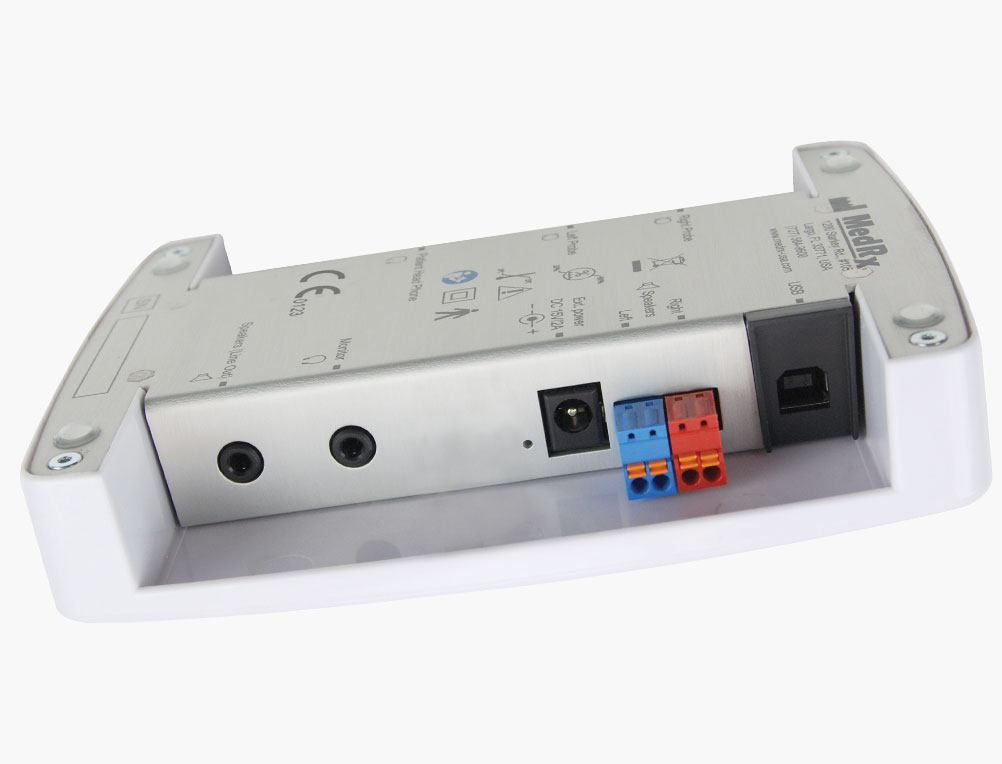

  • AVANT REM Speech right side

Technical Specs

  • Standards:
    ANSI S3.46, IEC 61669, EN 61669

    Dimensions:
    Approx. 16 cm x 12 cm x 3 cm (L x W x H)
    Approx. 6.5″ x 5″ x 1.25″ (L x W x H)

    Weight: <  500 g <1 lb

    System Modality: Real Ear Measurement; Binaural Live Speech Mapping; Hearing Loss Simulator; Hearing Instrument Simulator.

    Probe Microphones (L/R):
    Dual Electret Microphone Elements (2 Probe Microphones)

    Probe Microphone Tube:

    Silicone 1.0 mm Nominal Diameter

    Measurement Frequency Range:
    125 – 8000 Hz

  • Test Stimuli:
    Broadband Noise and Synthesized Random Noise – Pink, White, Byrne LTASS and ANSI weighted; ICRA; ISTS; Microphone, File, CD-ROM for Live Speech Mapping , Chirp

    Test Stimulus Levels at 1m:
    45 – 90 dB SPL in 1 dB Steps – 200 Hz thru 8K Hz (depending on speaker wattage & efficiency)

    Test Stimulus Accuracy: ± 3 dB SPL

    Analysis Mode: User Selectable 1/3, 1/6, 1/12, 1/24, 1/48 Octave Bands

    ANSI S3.46-1997 Test Available IEC/EN 61669:2001:
    Real Ear Unaided Response, Real Ear Unaided Gain; Real Ear Insertion Gain; Real Ear Occluded Response; Real Ear Occluded Gain; Real Ear Aided Response; Real Ear Aided Gain

  • Other Test Available: Live Speech Mapping with Peaks and LTASS analysis; Real Ear to Coupler Difference, Occlusion Effect, Percentile Analysis

    Prescription Methods: NAL-RP; 1/3 Gain; 1/2 Gain; Berger; Pogo 1; Pogo 2; FIG6; DSL m[I/O] NAL-NL1; NAL-NL2

    External Connections: Power Connection USB 2.0 Input 5.0 Volt Bus; Line-Output Jack (Speakers) 3.5 mm Stereo Jack; Speaker Output (Internal Amplifier) (2) 3.81mm Pluggable Spring Clamp; Probe Microphones Inputs (2) 8 Pin Mini-DIN; Operator Headset Jack 3.5 mm Stereo Jack; Patient Headset Jack 3.5 mm Stereo Jack; Power Jack 2.1 mm X 5.5 mm.

    Hearing Loss Simulator and Hearing Instrument Simulator: Software Based Sound. Equalization With Available Live Speech Mapping Functionality

  • Communication: Talk forward and talk back

    Data Connection: USB

    Mode of Operation: Continuous

    Warm up Time: Less than 5 min after USB connection

    Power Supply:100 - 240 V~ 50/60 Hz ±10 % producing 15 VDC, USB: 5 VDC

    Power Consumption: Less than 500 mA at 15 VDC / less than 500mA at 5 VDC

    Operating Temperature: 10°C to 35°C
    Operating Humidity: 30% to 90%
    Storage Temperature: -20°C to 50°C
    Storage Humidity: 10% to 90%
